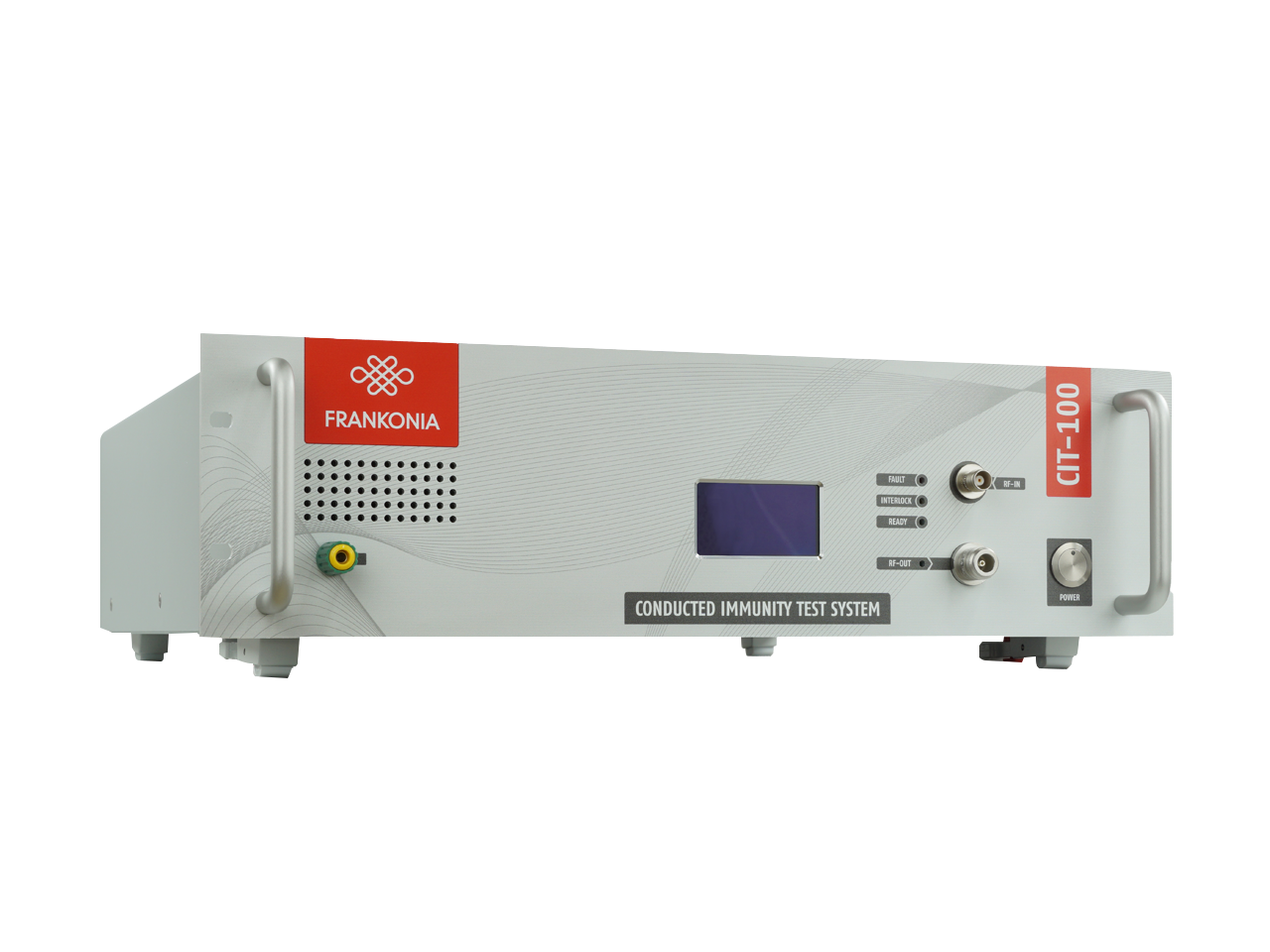

The CIT-100 is a complete test system for conducted RF-immunity
testing and BCI-testing acc. to IEC/EN 61000-4-6, ISO 11452-4, MIL-STD 461, CS114 and similar standards.
The CIT-1000 is a further development of the for years available
and proven „CIT-10“, with the extended frequency range up to
1200MHz, stand-alone-operation via integrated Touch-Screen-PC as
well as integrated directional coupler and power-meter for forward
and reverse power measurement.

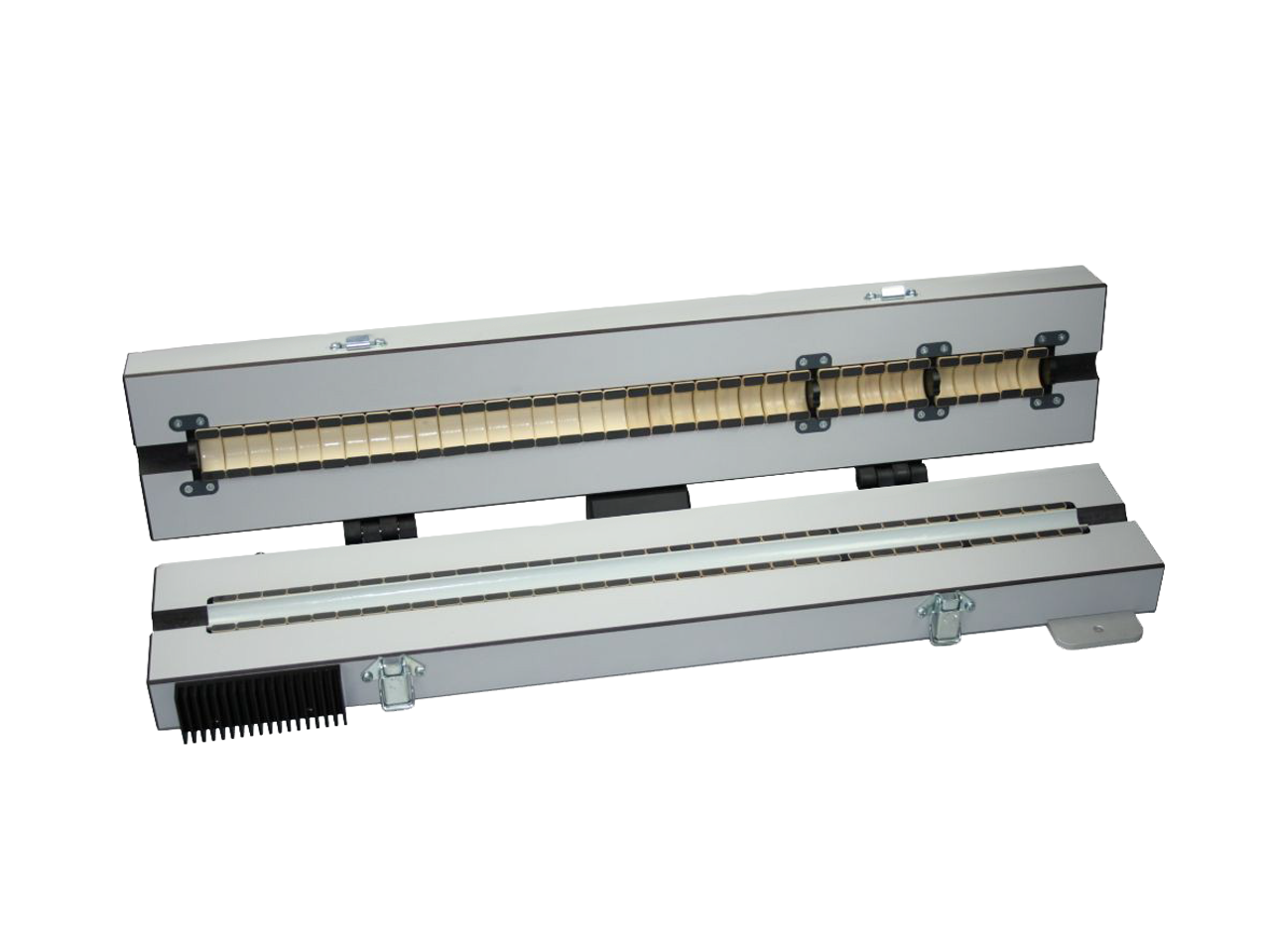

EM-clamp for immunity testing of cables with up to 20 mm diameter

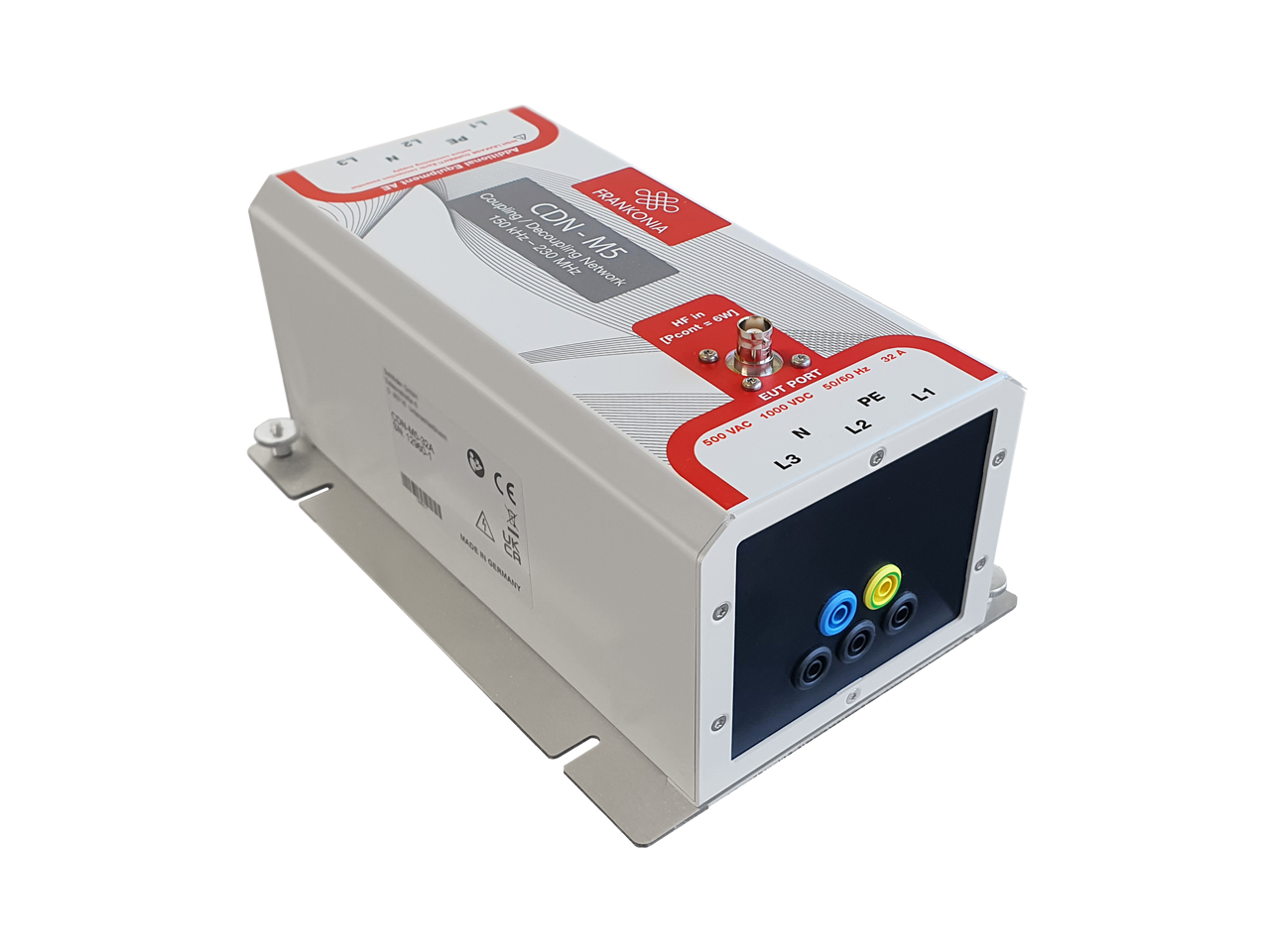

COUPLING/DECOUPLING NETWORKS (CDN)
FOR IMMUNITY TESTING ACCORDING TO IEC / EN 61000-4-6

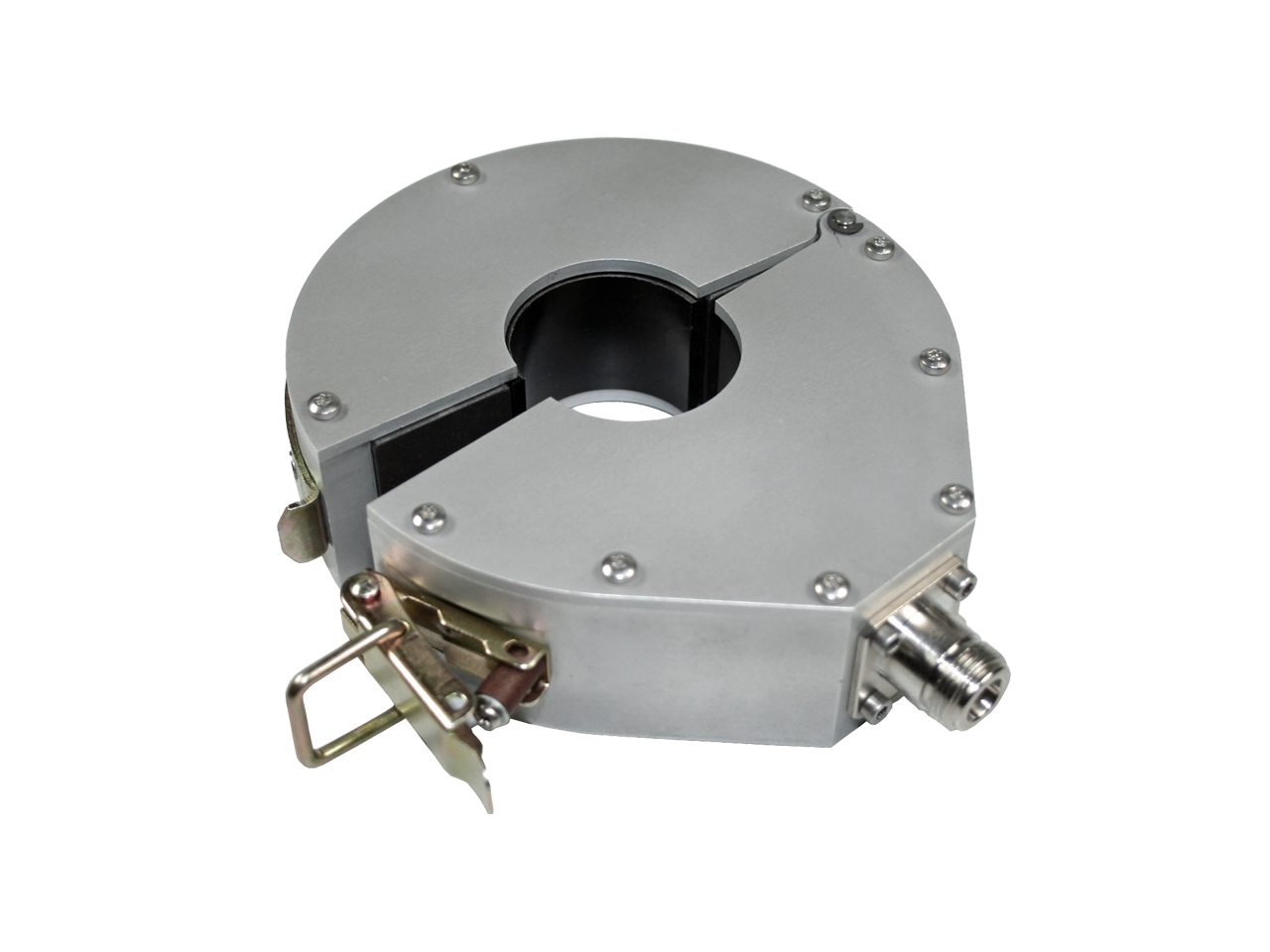

Bulk Current Injection Probe
Bulk Current Injection Probe 1 MHz – 400 MHz
The Current Monitoring probes may be used whenever RF current measurements
are required. Current measurements are made by placing a current carrying
conductor within the “sensing” window of the probe and measuring the probe’s
output voltage with an RF detector. Calibration of the probe permits the
conversion of the voltages measured to current.
